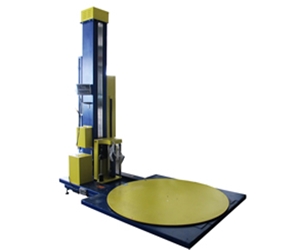

Automatic Pallet Wrapper-SJ4503S

Automatic stretch wrapping machine,stretch wrapper SJ4503S Pallet wrapper (Pallet wrapping machine) with scale

Auto/automatic pallet wrapping machine/stretch wrapper/stretch wrapping machine-Pre-stretch film carriage upto 250%, photocell detect pallet height, keyboard control panel

Pre-stretch rate:250-300%

Diameter of turntable:1500mm

Max packing height:2100mm

Max packing weight:2000kg

Film reel inside diameter:75mm

Film reel outside diameter:250mm

Turntable speed:1-10 cycles/Minute

Turntable height:80mm

Turntable motor:0.75kw

Film-rack lift motor:0.18kw

Power supply:220V 50HZ 1Phase /380V 50HZ 3Phase

Dimension of machine(Lx W x H):1510X2500X2600mm

Features

1. Control System:PCB

2. Film carriage upward/downward speed is adjustable

3.Turntable speed is adjustable

4. Top wrapping cycles is adjustable from 0-9

5. Bottom wrapping cycle is adjustable from 0-9

6. Recycle wrapping rounds is adjustable from 0-9

7. Photocell sensering the pallet height

8. Precise phase stopping at cycle end

9. Manual control is available

Send Enquiry

Category: SJ-4503 series pallet wrapper
Product Code: Automatic Pallet Wrapper-SJ4503S
